Loader Crane
PK 12.001 SLD 3
MediumTechnical Data
| Max. lifting moment | 11.1 mt |
| Max. lifting capacity | 5700 kg |
| Max. hydraulic outreach | 12.0 m |
| Max. manual outreach | 15.9 m |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 1.3 mt |
| Stabilizer spread (std) | 3.3 m |
| Fitting space required (std) | 0.70 m |
| Width folded | 2.32 m |
| Max. operating pressure | 350 bar |
| Pump capacity | 30 - 45 l/min |
| Dead weight (std) | 1140 kg |
 Lifting moment (mt) |
 Outreach (m) |
 Slewing angle |
 Slewing torque (mt) |
 Pressure (MPa) |
 Pump capacity (l/min) |
 Crane Weight (kg) |
 Crane Height (mm) |
 Crane Width (mm) |
 Installation With (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|

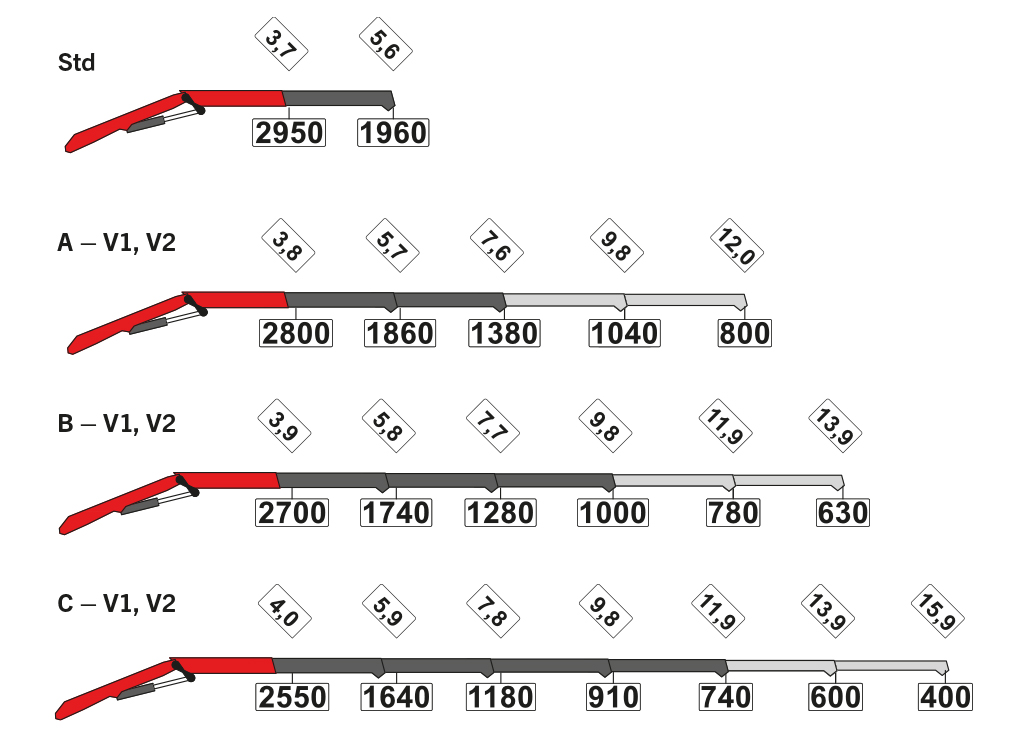

| Std | 10.2 | 12.0 | 400 | 1.3 | 35.0 | 30-45 | 1450 | 2110 | 2400 | 720 |
| A | 10.7 | 7.8 | 400 | 1.3 | 35.0 | 30-45 | 1250 | 2110 | 2400 | 720 |
| B | 10.4 | 9.9 | 400 | 1.3 | 35.0 | 30-45 | 1350 | 2110 | 2400 | 720 |
| C | 10.2 | 12.0 | 400 | 1.3 | 35.0 | 30-45 | 1450 | 2110 | 2400 | 720 |
