Access Platform
P 280 B
Technical Data
| Max. height of work | 27.6 m |
| Max. basket floor height | 25.6 m |
| Max. horizontal outreach /with basket load | 17 m |
| Slewing range of basket | +/- 90° |
| Max. stabilizer spread | 3.6 m |
| max. basket load | 250 kg |
| Workman basket - breadth / length / height | 1.4 x 0.7 x 1.1 m |
| Rotation angle of turntable | 500° |
| Maximum stabilization gradient | 5° |
| Height in transport position | 2.90 m |
| Width in transport position | 2.22 m |
| Overall length | 7.85 m |
| Overall weight | 3500 kg |

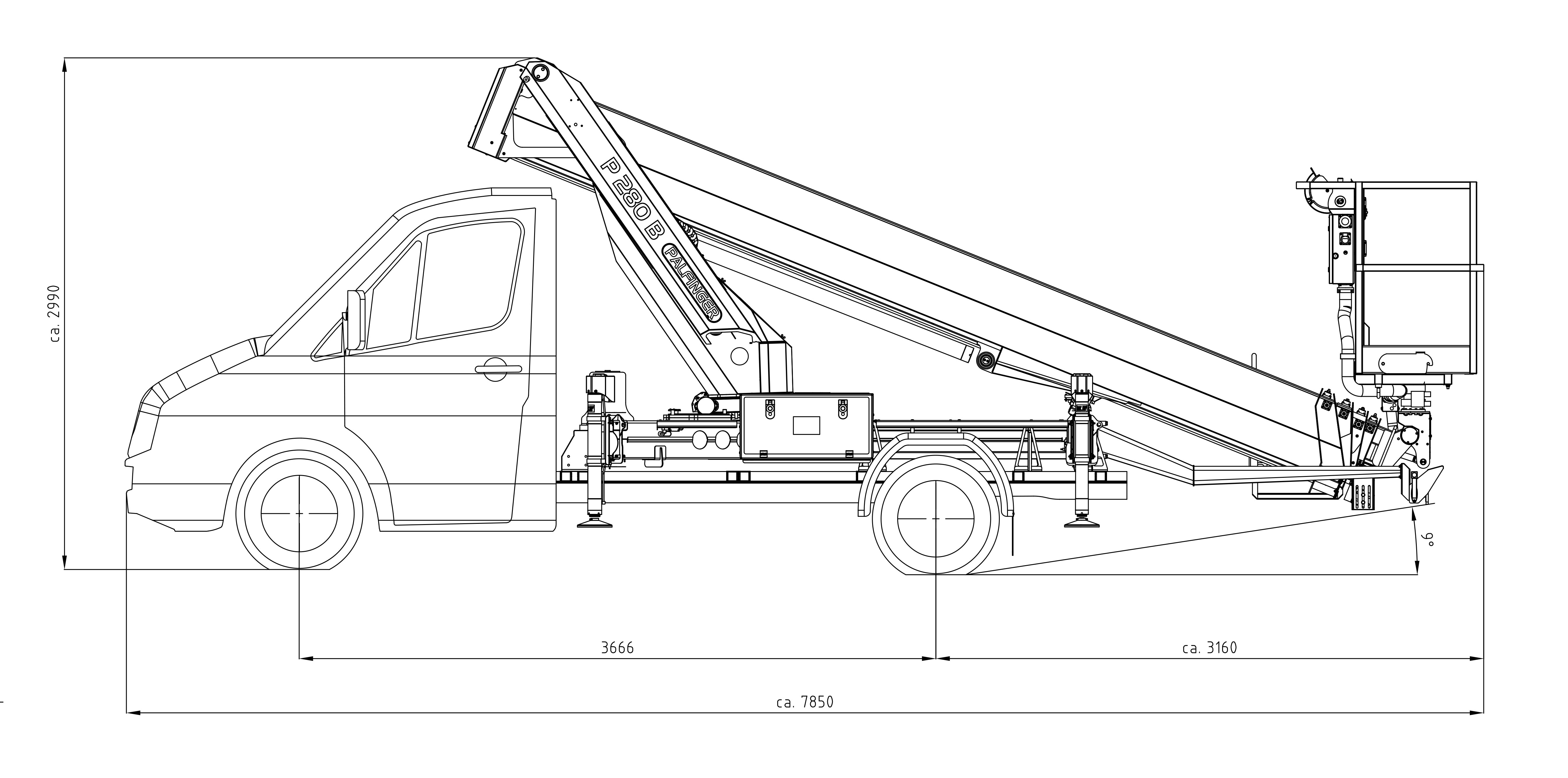

Technical Drawings
