Access Platform
All-Terrain Platform Edition
Technical Data
| Max. height of work | 25.3 m |
| Max. basket floor height | 23.3 m |
| Max. horizontal outreach /with basket load | 16,90 m |
| Slewing range of basket | 2x 90° |
| Operating angle of working arm | 185° |
| max. basket load | 250 kg |
| Workman basket - breadth / length / height | 1,4 x 0,7 x 1,1 m |
| Rotation angle of turntable | 500° |
| Height in transport position | 3.65 m |
| Width in transport position | 2.40 m |
| Overall length | 7.95 m |
| Overall weight | 10500 kg |

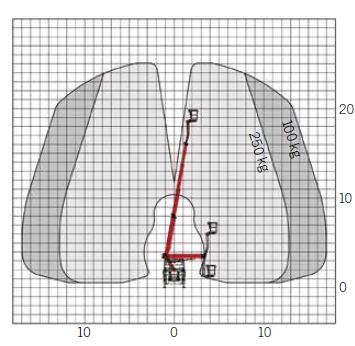

Technical Drawings
